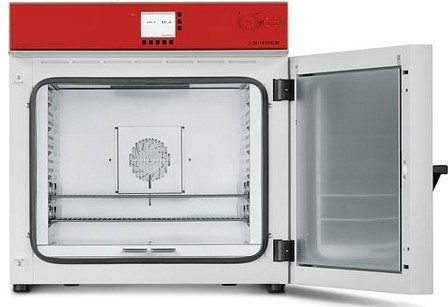

Name: 9010-0202 M 115 Drying/Heating Chamber with forced convection and advanced program functions, 115L, 230V/50-60 Hz/1 ph Binder
Brand: Binder
SKU: 9010-0202
Price: 12014.00 USD
Availability: InStock

With a maximum of 300 °C and various programming options the M series material test chambers are ideal for material and aging tests. With a high air
flow, the powerful fans ensure rapid heating.

Temperature range: room temperature plus 5 °C to 300 °C
APT.line™ preheating chamber technology
Adjustable fan speed
Program-controlled ventilation flap
Color LCD controller with time-segment programming
2 chrome-plated racks
Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
Computer interface: RS 422

Designation	M115-230V¹
Option model	Standard
Order number	9010-0202
Measures
Interior volume [L]	115
Net weight of the unit (empty) [kg]	89
permitted load [kg]	50
Load per rack [kg]	20
Internal Dimensions
Width [mm]	600
Height [mm]	480
Depth [mm]	410

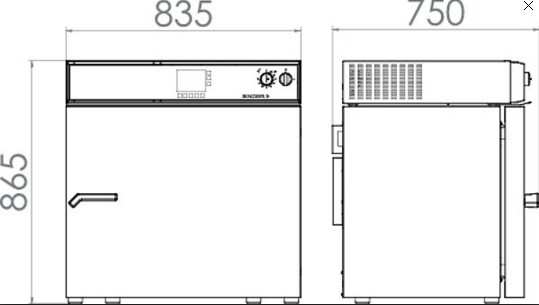

Outer dimensions
Width net [mm]	835
Height net [mm]	865
Depth net [mm]	645
Wall clearance back [mm]	160
Wall clearance sidewise [mm]	100
Environment-specific data
Energy consumption at 150 °C [Wh/h]	544
Fixtures
Number of shelves (std./max.)	2/6
Performance Data Temperature
Temperature range 5 °C above ambient temperature to [°C]	300
Temperature variation at 150 °C [± K]	1.5
Temperature fluctuation at 150 °C [± K]	0.3
Heating-up time to 150 °C [min]	16
Recovery time after 30 seconds door open at 150 °C [min]	3
Air change data
Air change (approx.) at 150 °C [x/h]	96
Electrical data
Rated Voltage [V]	230
Power frequency [Hz]	50/60
Nominal power [kW]	1.6
Phase (Nominal voltage) [ph]	1
