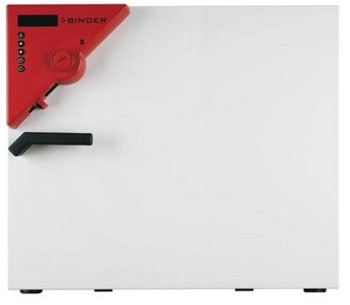

9010-0194,9010-0196 FD 23 Drying/Heating Chambers with forced convection, 20L Binder
BINDER drying chambers of the FD series are especially used in applications requiring rapid drying and sterilizatio
$2,565.00 – $2,584.00
BINDER drying chambers of the FD series are especially used in applications requiring rapid drying and sterilization. Thanks to its fully homogenous temperature distribution, fast dynamics and high-performance fan, these drying chambers save priceless time.
Important characteristics
- Temperature range: room temperature plus 5 °C to 300 °C
- APT.line™ preheating chamber technology
- Forced convection
- Adjustable exhaust air flap
- Controller with timer functions
- 2 chrome-plated racks
- Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
| Designation | FD023-230V¹ | FD023UL-120V¹ |
| Option model | Standard | Standard |
| Order number | 9010-0194 | 9010-0196 |
| Measures | ||
| Interior volume [L] | 20 | 20 |
| Net weight of the unit (empty) [kg] | 27 | 27 |
| permitted load [kg] | 25 | 25 |
| Load per rack [kg] | 12 | 12 |
| Doors | ||
| Unit doors | 1 | 1 |
| Internal Dimensions | ||
| Width [mm] | 222 | 222 |
| Height [mm] | 330 | 330 |
| Depth [mm] | 300 | 300 |
| Outer dimensions | ||
| Width net [mm] | 435 | 435 |
| Height net [mm] | 495 | 495 |
| Depth net [mm] | 520 | 520 |
| Wall clearance sidewise [mm] | 100 | 100 |
| Wall clearance back [mm] | 160 | 160 |
| Environment-specific data | ||
| Energy consumption at 150 °C [Wh/h] | 300 | 300 |
| Fixtures | ||
| Number of shelves (std./max.) | 2/4 | 2/4 |
| Performance Data Temperature | ||
| Temperature range 5 °C above ambient temperature to [°C] | 300 | 300 |
| Temperature variation at 150 °C [± K] | 2.5 | 2.5 |
| Temperature fluctuation at 150 °C [± K] | 0.3 | 0.3 |
| Heating-up time to 150 °C [min] | 25 | 25 |
| Recovery time after 30 seconds door open at 150 °C [min] | 6 | 6 |
| Air change data | ||
| Air change (approx.) at 150 °C [x/h] | 64 | 64 |
| Electrical data | ||
| Rated Voltage [V] | 230 | 120 |
| Power frequency [Hz] | 50/60 | 60 |
| Nominal power [kW] | 0.8 | 0.8 |
| Unit fuse [A] | 10 | 12.5 |
| Phase (Nominal voltage) [ph] | 1 | 1 |
| Weight | 59.6 lbs |
|---|---|
| Dimensions | 20.5 × 17.2 × 19.5 in |
| Product | 9010-0196(FD 23 Drying/Heating Chambers with forced convection, 20L, 120V/60 Hz/1 ph), 9010-0194(FD 23 Drying/Heating Chambers with forced convection, 20L, 230V/50-60 Hz/1 ph) |
