9010-0106,9010-0001,9010-0003 E 28 Drying/Heating Chamber with mechanical adjustment, 28L Binder
With the drying chamber of the BINDER E series, you will have a reliable and efficient equipment with a solid equipment at an extremely attractive price.
$1,421.00 – $1,640.00
With the drying chamber of the BINDER E series, you will have a reliable and efficient equipment with a solid equipment at an extremely attractive price.
It is used preferentially in fundamental research, as well as in human and veterinary medicine.
Important characteristics
- Temperature range: 60 °C to 230 °CC
- Adjustable exhaust air flap
- Hydro-mechanical thermostat
- Class 1 temperature limitation device (Model E028-230V-T)
- Timer 0 – 120 min
- 2 chrome-plated racks
| Designation | E028-230V¹ | E028-230V-T¹ | E028-120V¹ |
| Option model | Standard | Standard | Standard |
| Order number | 9010-0001 | 9010-0003 | 9010-0106 |
| Measures | |||
| Interior volume [L] | 28 | 28 | 28 |
| Net weight of the unit (empty) [kg] | 22 | 22 | 22 |
| permitted load [kg] | 25 | 25 | 25 |
| Load per rack [kg] | 10 | 10 | 10 |
| Doors | |||
| Unit doors | 1 | 1 | 1 |
| Internal Dimensions | |||
| Width [mm] | 400 | 400 | 400 |
| Height [mm] | 280 | 280 | 280 |
| Depth [mm] | 250 | 250 | 250 |

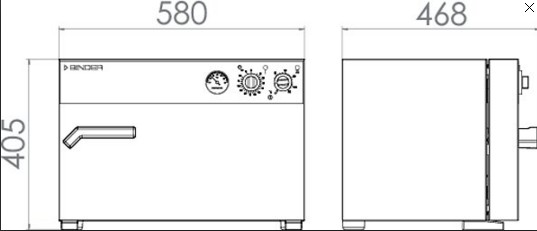

| Outer dimensions | |||
| Width net [mm] | 580 | 580 | 580 |
| Height net [mm] | 405 | 405 | 405 |
| Depth net [mm] | 425 | 425 | 425 |
| Wall clearance sidewise [mm] | 100 | 100 | 100 |
| Wall clearance back [mm] | 160 | 160 | 160 |
| Data | |||
| – | – | – | |
| Fixtures | |||
| Number of shelves (std./max.) | 2/4 | 2/4 | 2/4 |
| Performance Data Temperature | |||
| Temperature range [°C] | 60…230 | 60…230 | 60…230 |
| Heating-up time to 150 °C [min] | 36 | 36 | 36 |
| Recovery time after 30 seconds door open at 150 °C [min] | 19 | 19 | 19 |
| Electrical data | |||
| Rated Voltage [V] | 230 | 230 | 120 |
| Power frequency [Hz] | 50/60 | 50/60 | 60 |
| Nominal power [kW] | 0.8 | 0.8 | 0.8 |
| Phase (Nominal voltage) [ph] | 1 | 1 | 1 |
| Weight | 48.6 lbs |
|---|---|
| Dimensions | 16.8 × 22.9 × 16 in |
| Product | 9010-0106(E 28 Drying/Heating Chamber with mechanical adjustment, 28L, 120V/60 Hz/1 ph), 9010-0001(E 28 Drying/Heating Chamber with mechanical adjustment, 28L, 230V/50-60 Hz/1 ph), 9010-0003(E 28 Drying/Heating Chamber with mechanical adjustment, with TB class 1, 28L, 230V/50-60 Hz/1 ph) |
