Gel Documentation, Laboratory Equipment

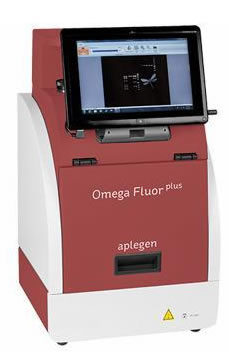

81-12521-00, Omega Fluor™ Plus Gel Documentation System, 302 nm Gel Company
Boosted by a high resolution camera and hands free SmartCapture Technology™, the Omega Fluor Plus has everything you need for exceptional DNA and protein imaging, including the tablet! Switching between applications is a breeze with standard features such as multiple light sources and a multi-position filter wheel.
$9,678.00
Make your data work for you!
Quickly grab quantitative images of your blots or gels right on your bench with the Omega Lum C. With its broad dynamic range and sensitive detection, you can’t get better data from your experiments anywhere else. And it is so easy – you’ll never want to use film again.
Features & Benefits
- Quantify, not just qualify
- Wide dynamic range for accurate quantification of low and high abundant samples in the same image
- Optimized camera and optics design for highest sensitivity and signal capture
- Fully automated western blot and gel imaging
- SmartCapture Technology™ eliminates filter selection and focus adjustment
- Image your chemiluminescent blots easier than film
- Publication-quality images
- 65,536 grayscales with over 8 million pixels for excellent resolution
- Universal TIFF and JPEG file formats
- Small footprint, large format
- Compact footprint fits right on your bench top
- Accommodates large format protein and nucleotide gels (i.e. PROTEAN II, Subcell 96)
Imaging Area: up to 15.5 x 20.5 cm
| Specifications | ||
| Applications | Chemiluminescence, UV Fluorescence, Colorimetry, Densitometry, Gel Documentation | |
| Dye Compatibility | SYBR® Safe, SYBR family, Ethidium Bromide, Coomassie Blue, Silver Stain, AdvanStain Scarlet, SYPRO® Ruby, Oriole™ and more | |
| Hardware | 8.3MP scientific grade CCD camera with auto focus F0.95 lens, -50o C ambient cooled camera, integrated tablet with pre-installed Image Capture Software | |
| Software | Customizable Omega Lum G Image Capture Software, UltraQuant Analysis Software | |
| Excitation | Trans-UV (dual wavelength), Trans-white conversion screen, Epi-white LEDs, Epi-blue LEDs | |
| Emission | Orange (included), Blue, Green, Red (optional) | |
| Dimensions (W x D x H) | 12.5 x 18.0 x 24.0 inches (31.8 x 45.7 x 61.0 cm) | |
| Weight | 75.0 lbs (34 kg) | |
| Weight | 49 lbs |
|---|---|
| Dimensions | 12.2 × 13.6 × 27 in |
