Gel Documentation, Laboratory Equipment

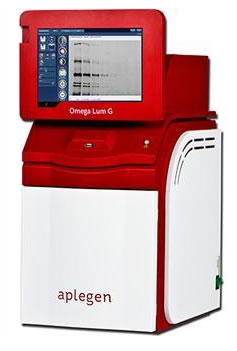

81-12100-00, Omega Lum™ G Imaging System Gel Company
With the Omega Lum™ G snap an image of your gel or blot, get your data and go! Our SmartCapture Technology™ simplifies imaging, so all you need is to pick your application, exposure, and capture your image. You will have a publication-ready image in seconds, and can get back to what’s important – your work.
$13,638.00
Get your data and go!
With the Omega Lum™ G snap an image of your gel or blot, get your data and go! Our SmartCapture Technology™ simplifies imaging, so all you need is to pick your application, exposure, and capture your image. You will have a publication-ready image in seconds, and can get back to what’s important – your work.
Features & Benefits
- Fully automated SmartCapture Technology™
- No filter selection or focus adjustment required
- Imaging flexibility
- Chemiluminescence for Western, Northern, and Southern blots
- Multiple excitation sources for nucleotide and protein stains
- Absorbance for Ponceau-stained membranes or petri dishes
- Publication-quality images
- 65,536 grayscales with over 6 million pixels for excellent resolution
- Universal TIFF and JPEG file formats
- Small footprint, large format
- Compact footprint fits right on your bench top
- Accommodates large format protein and nucleotide gels (i.e. PROTEAN II, Subcell 96)
Imaging Area: up to 20.5 x 25.0 cm
| Specifications | ||
| Applications | Chemiluminescence, UV Fluorescence, Colorimetry, Densitometry, Gel Documentation | |
| Dye Compatibility | SYBR® Safe, SYBR family, Ethidium Bromide, Coomassie Blue, Silver Stain, AdvanStain Scarlet, SYPRO® Ruby, Oriole™ and more | |
| Hardware | 6MP scientific grade CCD camera with a fixed lens, -30o C ambient cooled camera, integrated tablet with pre-installed Image Capture Software | |
| Software | Customizable Omega Lum G Image Capture Software, UltraQuant Analysis Software | |
| Excitation | Trans-UV (dual wavelength), Trans-white conversion screen, Epi-white LEDs, Epi-blue LEDs | |
| Emission | Orange (included), Blue, Green, Red (optional) | |
| Dimensions (W x D x H) | 12.5 x 18.0 x 24.0 inches (31.8 x 45.7 x 61.0 cm) | |
| Weight | 65.0 lbs (29.5 kg) | |
| Weight | 65 lbs |
|---|---|
| Dimensions | 18 × 12.5 × 24 in |
