12090-2E/ 12090-2E-N/ S-EVAP-RB 10 Position 250ml- Organomation
$8,901.00 – $10,281.00

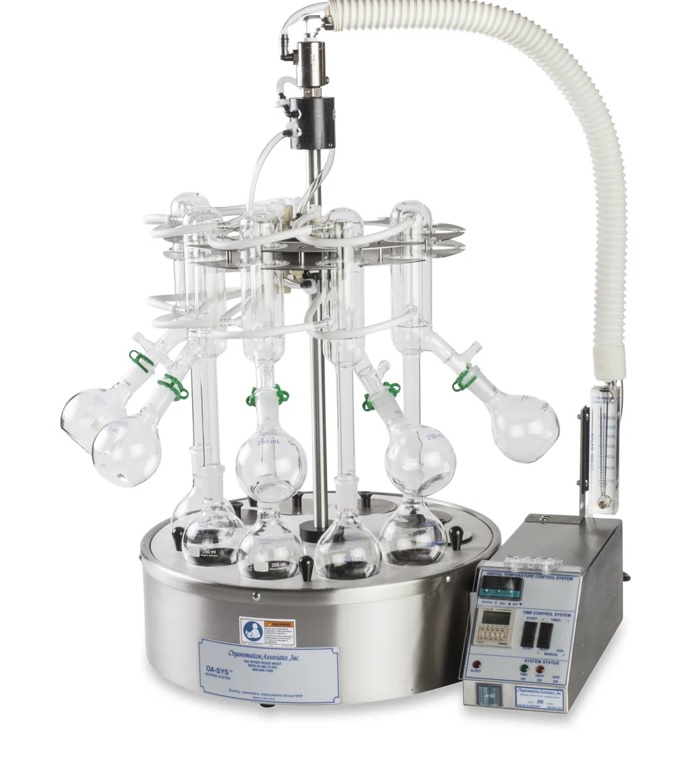

The digitally controlled 10 position S-EVAP-RB large scale solvent evaporator (Cat# 12090) can evaporate up to 10 samples at once with a capacity of up to 250 ml (Cat# GS2162) at each sample position. Smaller glassware accommodating up to 125 ml (Cat# GS2161) may also be used with the purchase of adapter rings (Cat# XA2286).
ADVANTAGES
- Solvent recovery: recover up to 97% of starting solvent volume with individual collection glassware
- Conserves valuable bench space: all samples are arranged in a circle
- Easy sample access: the instrument rotates allowing all samples to be accessed from the front
- Fewer connections: one water supply line in, one drain line out
STANDARD FEATURES
- Manifold for holding solvent recovery condensers
- Flow meter and rigid supply tube for condenser water supply
- Condenser water supply/drain manifold connects to a bench cold-water tap, or a refrigerated water chiller for improved control of condenser temperature and water conservation
- Parallel water supply/drain manifolds with quick disconnect tube fittings
- Bath temperature range 30°C – 100°C
- Evaporate solvents with boiling points up to 65°C
- Digital electronic temperature control +/- 2°C
OPTIONS
- Positive pressure type Z purged bath (Option Code -Z)
- 240V wiring and plug (Option Code -2)
- Nitrogen purge manifold (Option Code -N)
| Instrumental Name | |||||||
| Instrument Catalog Number | 12090 | ||||||
| Application | Round Flasks/Shallow Bath | ||||||
| Number of Sample Positions | 10 | ||||||
| Individual Solvent Collection | |||||||
| Overall Dimension (w x d x h) | 26 x 24 x 30 in 66 x 61 x 76 cm |
||||||
| Required Glassware | GS2162 | ||||||
| Sample Flask Type | Round w Flat Bottom, 250 mL | ||||||
| Condenser Type | Inverted Hopkins with 24/40 side arm | ||||||
| Collection Flask Type | Round w flat bottom, 250 mL | ||||||
| Heating Device Specs | |||||||
| Bath Model Number | 13165 | ||||||
| Heating Medium | Water | ||||||
| Inside Dimensions (Diameter x Depth) | 16.0 x 4.5 in 40.6 x 11.4 cm |
||||||
| Outside Dimensions (w x d x h) | 24 x 19 x 6in 61 x 48 x 15 cm |
||||||
| Total Wattage | 1300 W | ||||||
| Temperature Range | 30-100 °C | ||||||
| Temperature Controller Type | Digital Electronic with LED Display |
||||||
| Controller Accuracy | +/- 2 °C | ||||||
| Dimensions | 24 × 26 × 30 in |
|---|---|
| Product | 12090-2E (S-EVAP-RB 10 position, bath 1600W for 250mL round flasks), 12090-2E-N (S-EVAP-RB 10 position for 250mL round flasks, with nitrogen manifold add-on) |
