NR110, Precision Colorimeter 3nh
NR200 is another mainstream brand colorimeter introduced by 3nh which has synthesized the advantages of ten more traditional imported colorimeters and has experienced ten thousands tests and applied many innovative technologies. Accurate, Stable, Exquisite and Affordable!
$940.00

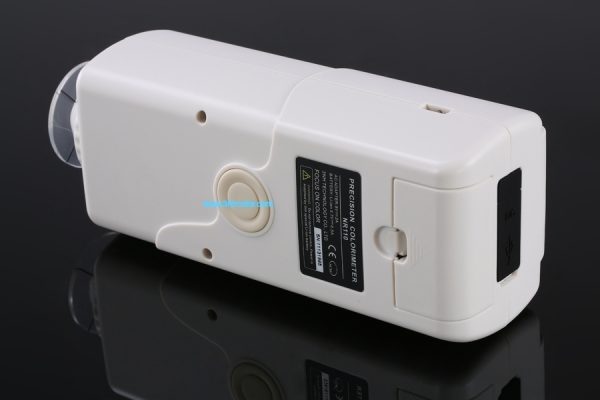

3NH NR110 Precision Colorimeter
Since 1998, from import to domestic, 3nh NR110 precision colorimeter is an iconic milestone in color test industry.
NR110 precision colorimeter features with 8/d structure that is very precise. This cheap colorimeter is spoken highly of by many customers, and the small size 4mm measurement aperture makes it popular used in many applications, such as fabrics, paper, plastic parts, building materials.
NR110 Precison Colorimeter Product Advantages
- Built-in white plate parameters. No need to calibrate each time which realize rapid measurement.
- Double Locating: Illuminating locating and precise cross locating.
- Switchable Double Measurement End Face: Large stable end face and small concave-convex end face.
- New Integrating Sphere Optical Path Design: Eliminating the stray light of main optical path and auxiliary optical path. Possessing the highest measurement stability and precision.
- 4mm Measuring Aperture.
- Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.
- Configure CQCS3 software. Connect PC computer to realize more functions.
- Having got SCM Metrological Certification, CE Certification, and ISO9001 Quality Management System Certification.
- Hand-head structure: small and convenient; make the measurement easier.
- Exquisite appearance: adopts traditional and fashionable aesthetic designs.
- Spending huge sums on high-end mold. Product consistency approaches 100%.
- High cost performance: large output, good quality, cheap products.
Illuminating Locating, Cross Locating, Large Stable End Face, Small Concave-Convex End Face. (for NR110)
| Models | NR110 | |
| Illuminating/Viewing Geometry | 8/d | |
| Measuring Aperture | Φ4mm | |
| Detector | Silicon photoelectric diode | |
| Locating | Illuminating Locating/Cross Locating | |
| Measurement End Face | Large stable end-face and small concave-convex end-face | |
| Color Space | CIEL*a*b*C*h* CIEL*a*b* CIEXYZ |
|
| Color Difference Formula | △E*ab △L*a*b* △E*C*h* | |
| Light Source | D65 | |
| Light Source Device | LED blue light excitation | |
| Errors Between Each Equipment | ≤0.80ΔE*ab | |
| Storage | 100pcs standards 20000pcs samples | |
| Repeatability | Standard deviation within ΔE*ab 0.08 Average of 30 measurements of standard white plate |
|
| Language | English/Chinese | |
| Weight | 450g | |
| Dimension | 205×67×80 mm | |
| Power source | Rechargeable lithium-ion battery 3.7V@3200mAh | |
| Lamp Life | 5 years, more than 1.6 million measurements | |
| Charging Time | 8 hours–100% electricity | |
| PC Software | CQCS3 Software | |
| Printer (optional) | Miniature thermal printer | |
It is sent directly from the provider
| Weight | 1 lbs |
|---|---|
| Dimensions | 3.2 × 2.65 × 8.1 in |
